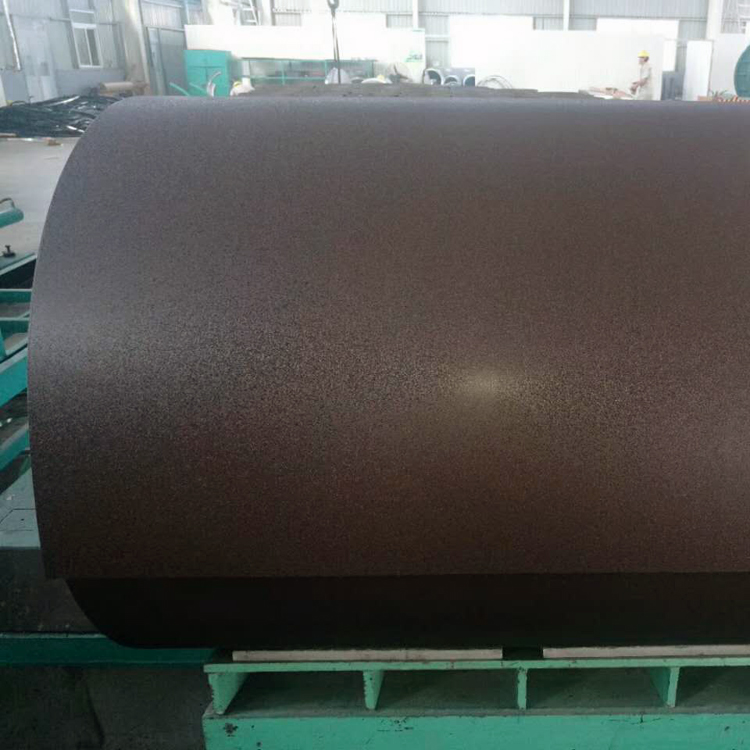

MATT FINISH COLOR COATED STEEL COIL

PREPAINTED GALVANIZED STEEL COIL (PPGI COIL)

MATT FINISH COLOR COATED STEEL COIL


StandardGB/T-12754: 2006, JIS3302, EN 10142, ASTM A653, JIS G3302, SGCC/SGCH, GB/T2518, European S tandard, ASTM A792, JIS G3321, JIS G3317
Base PlateCold rolled steel sheet, hot dipped zinc coated steel sheet, hot dipped A-Z coated steel sheet
EquipmentDouble coating double baking; three coating three painting
Capacity500,000Mt/year
SizeThickness 0.12mm-4mm, width 750mm-1500mm
Zinc Coating30g-180g

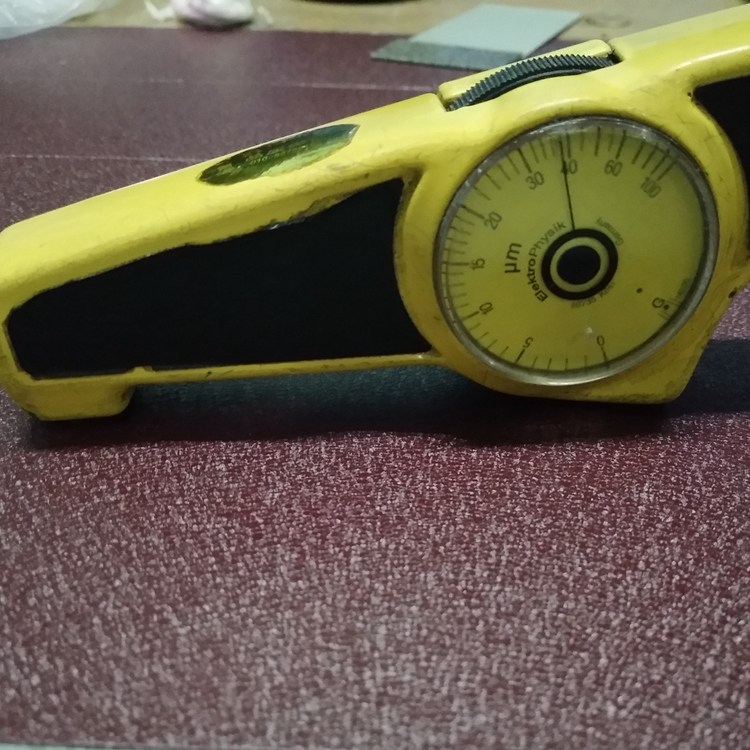

Paint THicknessTop:20+/-5um, back:5-7um
Coil Weight2.5Mt-8Mt
Coil IDφ508mm-φ610mm
Base SheetCold rolled steel sheet, hot dipped zinc coated steel sheet (small, regular or zero spangle), hot dipped A-Z coated steel sheet
Surface PaintEP, PE, HDP, SMP, PVDF
Color SeriesRAL color number series

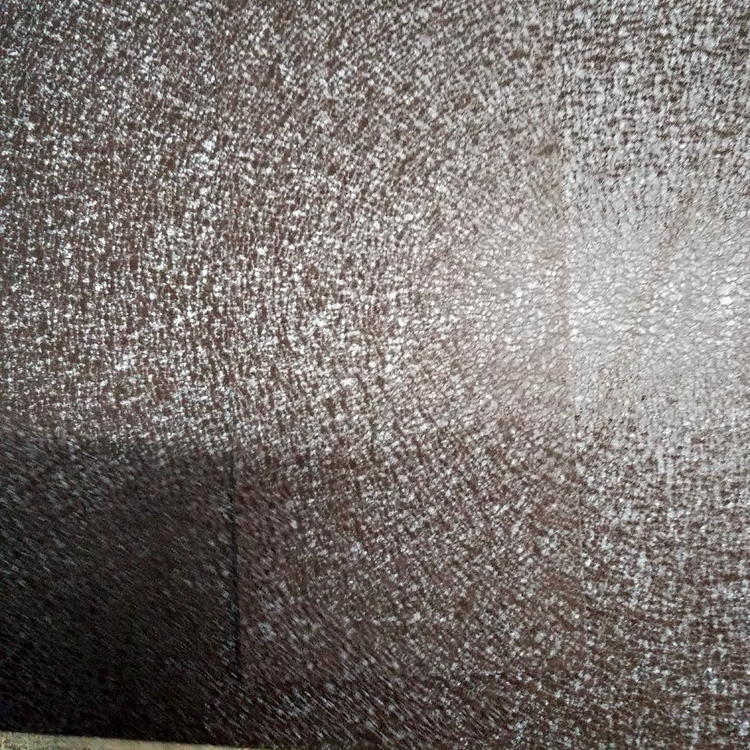

Surface TypePrinted, embossed, corrugated




Ppgi/ppgl(prepainted galvanized steel/prepainted galvalume steel)is coated with organic layer,which provides higher anti-corrosion property
and a longer lifespan than galvanized steel sheet.



The base metal for ppgi/ppgl consist of cold-rolled steel,hot dip galvanized steel,electro-galvanized steel and got dip galvalume steel. the
coating material is as following :polyester ,silicon modified polyester,polyvinylidene fluoride,high-durability polyester ,etc.











Applications of PPGI steel coil:




Now,PPGI/PPGL has been widely applied to many kind of buildings. More and more contractor earn their reputation




Package:
