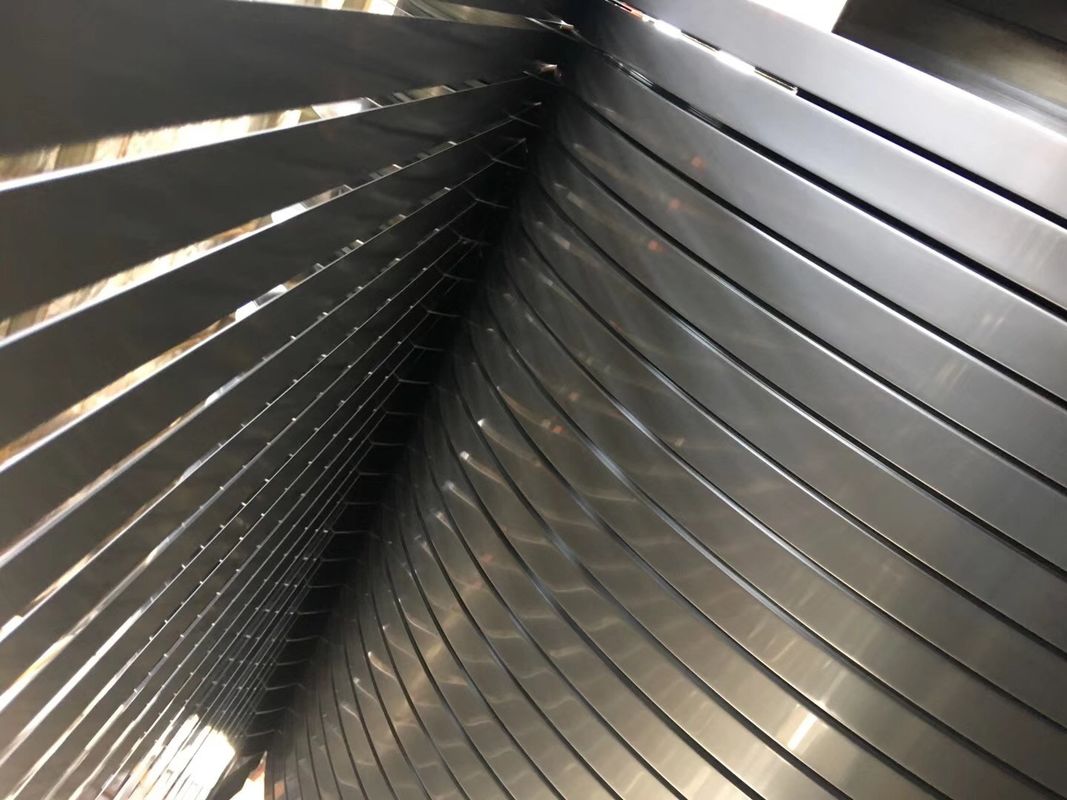

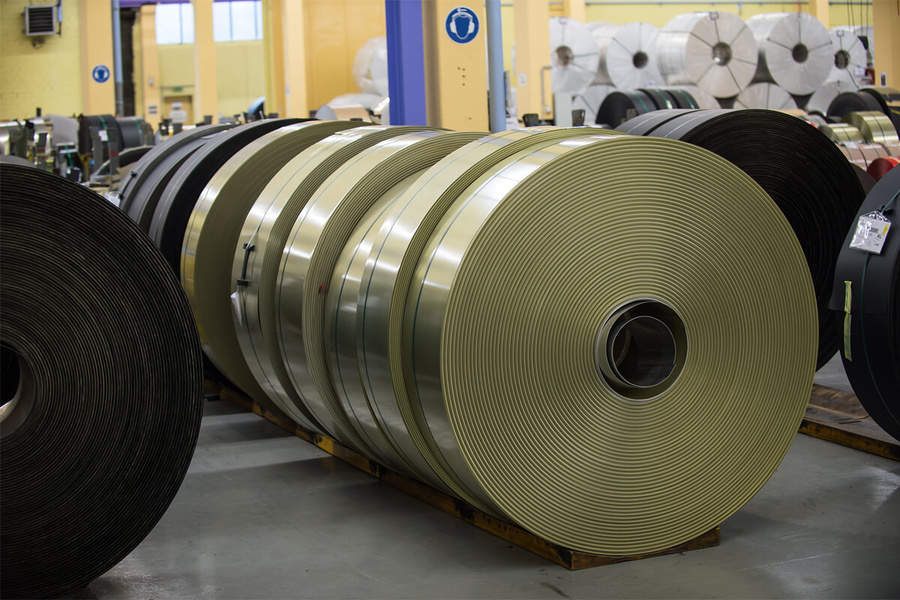

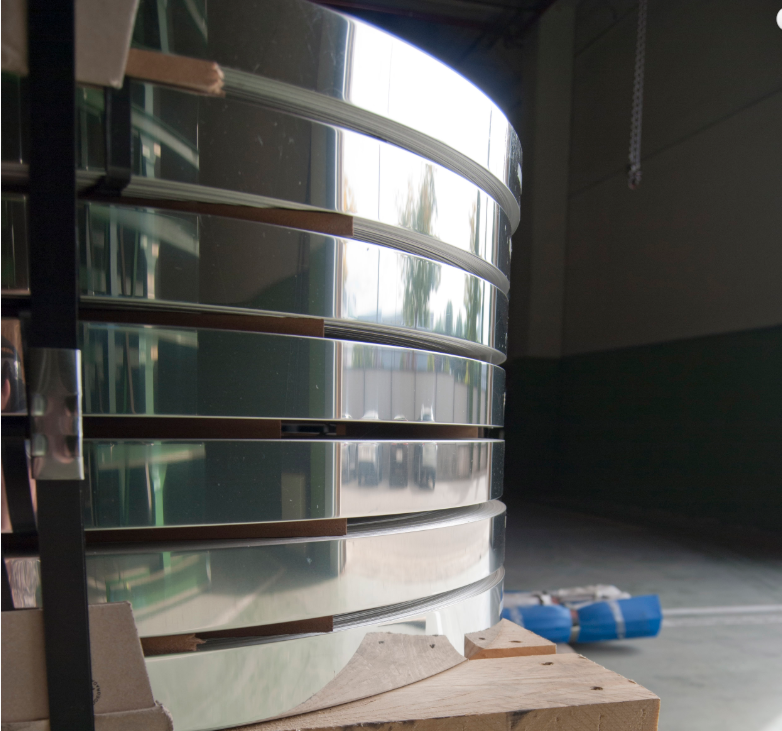

SAE 1050/S50C COLD ROLLED STEEL STRIP
| Steel Grade | AISI 1050/DIN 1.1210/JIS S50C/GB 50 |
| Size & Dimension | Dia: 16-600mm; WIDTH: 2000-2300mm; LENGTH: 3000-5800mm |
| Surface treatment | Black/Peeling/Polishing/Machined |
| HBW | ≤241 |
| Technique | Cold/Hot rolled, Cold-Drawn or Hot Forged |
| Heat Treatment | Annealed; Quenched; Tempered |
| Delivery Condition | Hot Rolled or Forged/Peeled or Black Surface/Annealed or QT |
| Test | SGS/UT100%/Elements Testing |
| Certificate | ISO/Mill Certificate |
| CHEMICAL COMPOSITIONS(%) |
| C | Si | Mn | P | S | Cr | Mo | Ni | Cu | Other |
| 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.25 | - | ≤0.30 | ≤0.25 | - |
Thickness: 0.5-3.5mm
Width: 10-600mm
Length: As customer’s requirements
Coil weight: 2-10MT, according to the customer's request
Surface treatment:dark/bright/black annealed
Hardness: full hard/semi hard/soft/drawing/deep drawing/extra deep drawing
Applications of SAE 1050 steel strip:
SAE 1050 STEEL STRIP is used for the manufacture of blades, brackets, brake discs, clips, clutches, springs, washers
and gears and for a wide range of applications that can make use of its good combination of mechanical properties.
